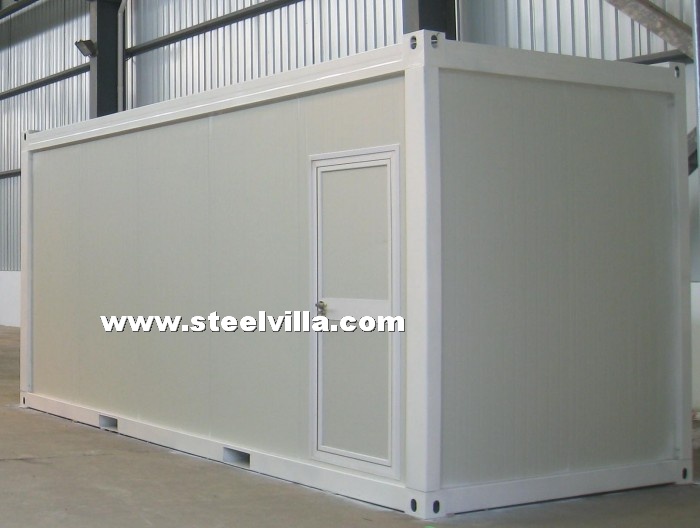

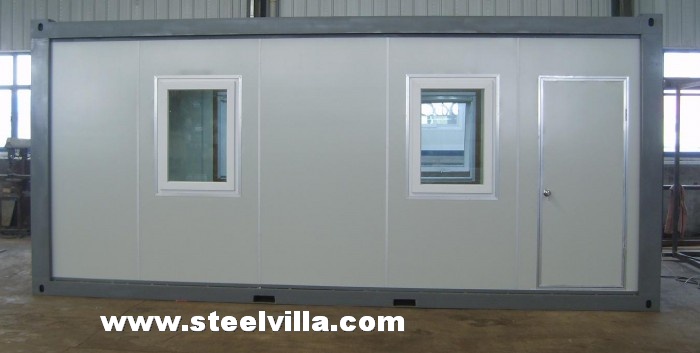

ITEM
|
SPEC
|
REMARK
|
Size
|
5950*2310*2740
|
Inner Size: 5700*2060*2400mm
|
Standard Option
|
6055*2435*2740
|
Inner Size: 5800*2190*2400mm
|
Standard Option
|
Basic Plate
|
Material Q235,weightiness 600kg
|
The thickness is 4mm.
|
1. Galvanization: 5-8μm.
2. Epoxy primer: 30-35μm.
3. Nitro lacquer: 50-60μm.
|
Roofing Plate
|
Material Q235,weightiness 550kg
|
The thickness is 3mm.
|
Beam
|
Material Q235,weightiness 39kg/Piece
|
The thickness is 3mm.
|
Wall Panel
|
Sandwich Panel (EPS)
|
Thickness: 75mm, Density: 15kg/m³,
Thickness of the color steel sheet:0.5mm(Both side)
|
Standard Option
|
Sandwich Panel (PU)
|
Thickness: 75mm, Density: 40kg/m³,
Thickness of the color steel sheet:0.5mm(Both side)
|
Optional
|
Sandwich Panel (Rockwool)
|
Thickness: 75mm, Density: 60kg/m³,
Thickness of the color steel sheet:0.5mm(Both side)
|
Optional
|
Insulation of the base
|
EPS
|
Density: 10kg/ m³, thickness: 30mm
|
Standard Option
|
PU(Paper cover)
|
Density: 45kg/ m³, Thickness: 30mm
|
Optional
|
Glass Wool
|
Density: 12kg/m³,Thickness: 30-100mm
|
Optional
|
Roofing Insulation
|
EPS
|
Density: 10kg/ m³,Thickness: 60mm
|
Standard Option
|
PU(Paper cover)
|
Density: 45kg/ m³,Thickness: (30+30)mm
|
Optional
|
Glass Wool
|
Density: 12kg/ m³,Thickness: 60-100mm
|
Optional
|
Inner Decoration
|
Base Decoration
|
Plywood: 12mm + Composite floor: 8mm
|
Standard Option
|
Plywood: 12mm+ Plastic Floor Leather :1.5mm
|
Optional
|
Bamboo Plywood: 12mm + Embossed aluminum sheet:1.5mm
|
Kitchen, Washing room
|
Color Steel Sheet Ceiling
|
Color Steel Sheet: 0.5mm
|
Standard Option
|
MDF Ceiling
|
MDF Board: 5mm (white color)
|
Optional
|
Door
|
Sandwich Panel with Alum frame
|
800*2000mm
|
Standard Option
|
PVC
|
Single Door, Double Door
|
Optional
|
Aluminum Alloy Door
|
Single Door, Double Door
|
Optional
|
Window
|
PVC Windows
|
Swing Window 700*1000mm
|
Standard Option
|
Sliding Window 1000*1000mm
|
Optional
|
Tilt Window (up & down)700*500mm
|
Washing room
|
Aluminum Alloy Window
|
Swing Window 700*1000mm
|
Optional
|
Sliding Window1000*1000mm
|
Optional
|
French Window(customized)
|
Optional
|
Color
|
Steel Frame
|
Grey , Light Grey, Blue, White
|
Standard Option
|
Wall Panel
|
Both side white,
Exterior Blue, interior white
|
Standard Option
|
Roofing Panel
|
Grey , Light Grey, Blue, White, Red
|
Standard Option
|
Steel Frame
|
Any color
|
Optional
|
Wall Panel
|
Optional
|
Roofing Panel
|
Optional
|
Technical Parameters
|
Roofing Loading
|
1.6KN/㎡
|
Design Value
|
Horizontal wind loading(Wall)
|
Wind Pressure: 0.6KN/㎡
Wind Speed: 32M/S (11 grade wind)
|
Design Value
|
Flooring Loading
|
3.5KN/㎡
|
Design Value
|
Heat Transfer Coefficient
|
Wall: 0.442w/㎡·K
|
Standard
|
Roofing: 0.55w/㎡·K
|
Standard
|
Flooring: 1.1w/㎡·K
|
Standard
|
Earthquake Fortification Intensity
|
8 degree earthquake
|
Design Value
|
Suitable Climatic Conditions
|
≥ -25℃
|
Design Value
|
Steel Dosage
|
80kg/㎡
|
Design Value
|
Weight (with door & window)
|
1.75T (5950*2310*2740mm)
|
1.75T
|
1.8T (6055*2435*2740mm)
|
1.8T
|
Dismantling and installation
|
20 times (only for the structure and wall, without decoration materials )
|
|
Execution Conditions
|
Tools
|
Crane (5T), Spanner, Electric Driller, Power
|
|
Ladder for roofing work
|
|
Productivity
|
3 Pieces/working day/4 workers
|
Reference Only
|
Delivery
|
40 feet HQ
|
6 sets / 5950*2310*2740 (individual package), highness: 820mm each
|
Reference Only
|
40 feet HQ
|
6 sets / 6055*2435*2740(bulk)
|
Reference Only
|
40 feet HQ +40 feet GP
|
12 sets / 5950*2310*2740(Base + Roofing)
|
Reference Only
|
